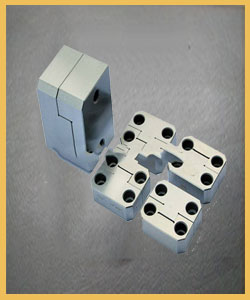

Home / Straight Block Set
Material : SKD II
HARDNESS : 58 - 62 HRC

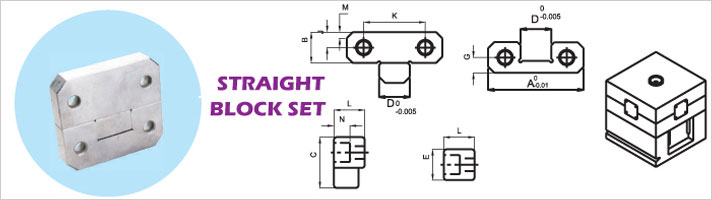

| (items No.) | A | B | C | D | E | F | G | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ITSB-38 | 38 | 22 | 30 | 12 | 22 | 10.5 | 6.5 | 7 | 7 | 22 | 13 | 5 | 8 |
| ITSB-50 | 50 | 21.5 | 30 | 17 | 21.5 | 10.5 | 6.5 | 11 | 11 | 34 | 16 | 5 | 8 |
| ITSB-75 | 75 | 36 | 50 | 25 | 36 | 16.5 | 10.5 | 18 | 18 | 50 | 19 | 8 | 12 |
| ITSB-100 | 100 | 45 | 65 | 35 | 45 | 16.5 | 10.5 | 22 | 22 | 70 | 19 | 10 | 12 |
| ITSB-125 | 125 | 45 | 65 | 45 | 45 | 16.5 | 10.5 | 22 | 22 | 84 | 25 | 10 | 12 |
